Improperly designed Slanted Rain Shelters turn open-front barns into wind tunnels that destroy up to 50% of your bedding inventory. This moisture ingress forces facility managers to constantly replace expensive shavings and exposes standard pre-galvanized frames to rapid corrosion.

This analysis establishes a weather-proofing standard using Hot-Dip Galvanization After Fabrication to BS EN ISO 1461 specifications. We examine how Q235B structural steel and UV-stabilized HDPE panels eliminate rot, ensuring your infrastructure withstands decades of wet weather exposure without maintenance.

The Vulnerability of the Open-Front 3-Sided Shed

Open-front sheds act as wind tunnels, allowing slanted rain to soak up to 50% of the bedding. This constant moisture destroys standard steel, which is why we strictly use Hot-Dip Galvanization After Fabrication.

The Mechanics of Wind-Driven Rain Ingress

A common misconception in stable design is that a roof alone guarantees a dry interior. In reality, rain rarely falls vertically. Wind forces precipitation into open-front structures at acute angles, effectively turning the shelter into a wind scoop. We call this the “slanted rain” effect.

Without a front barrier, wind-driven rain penetrates deep into the shelter, often soaking the front 30% to 50% of the floor area. This significantly reduces the usable square footage for the horse and ruins expensive hay and bedding. Worse, the constant presence of wet bedding creates an ideal breeding ground for bacteria, leading to hoof health issues like thrush.

Preventing Corrosion with Hot-Dip Galvanization After Fabrication

The ingress of moisture in an open-front shed exposes the steel frame to a high-corrosion environment. Standard “pre-galvanized” steel tubes—used by many budget competitors—fail here. When pre-galvanized tubes are welded, the heat burns off the zinc protection at the joints. Manufacturers often try to hide this with a quick spray of silver paint, but red rust inevitably appears within months.

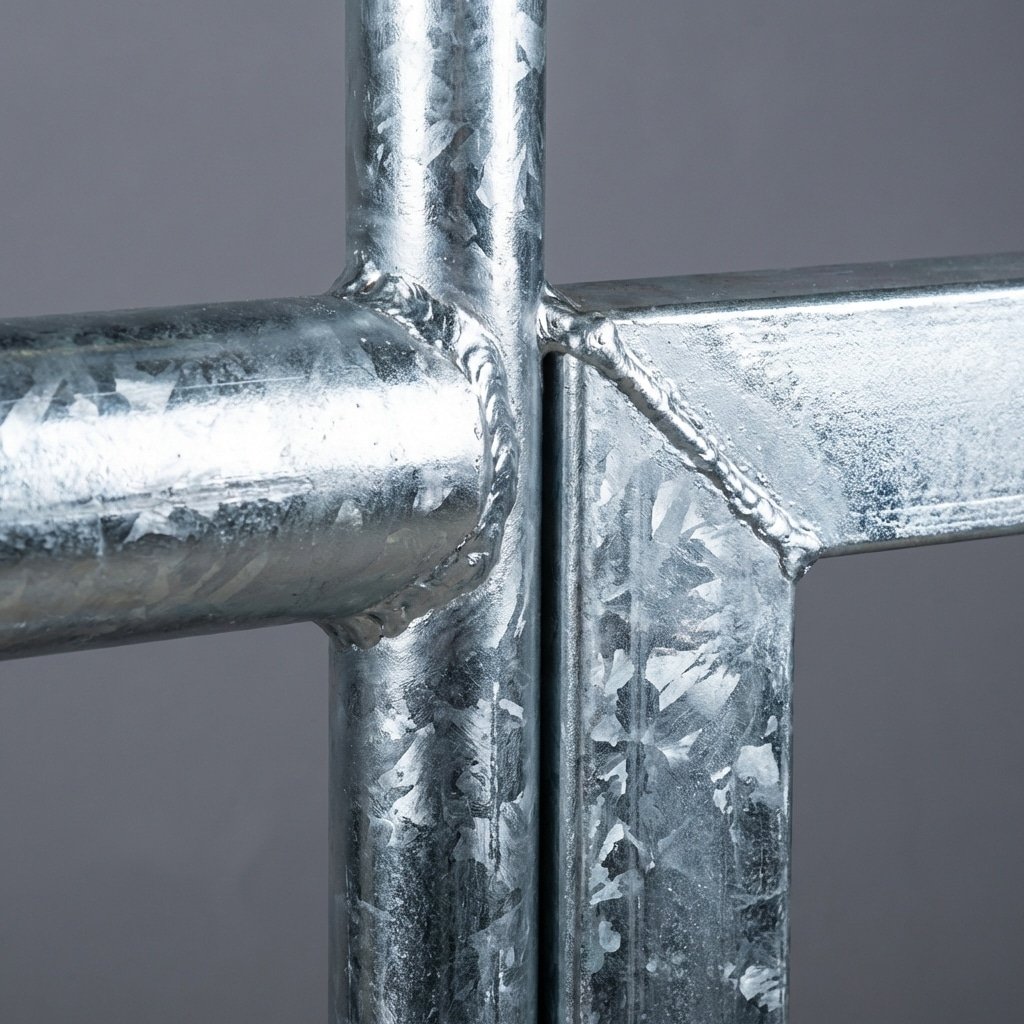

DB Stable eliminates this risk by using Hot-Dip Galvanization After Fabrication. We build the entire frame from raw Q235B steel first, then submerge the completed structure into a bath of molten zinc. This process, conforming to BS EN ISO 1461 standards, ensures total protection:

• Sealed Joints: The liquid zinc flows over welds, sealing them completely against moisture.
• Internal Coverage: The zinc coats the inside of the tubes, preventing rot from within.
• Die Dicke: We achieve an average coating thickness of > 70 microns, far exceeding the industry norm.

Calculating Prevailing Wind and Slanted Rain Direction

Decomposing wind data into vectors rather than simple averaging ensures accurate rain angles, allowing builders to optimize roof overhangs and wall placement for maximum dryness.

The Vector Decomposition Method for Wind Direction

Simple arithmetic averaging fails with wind direction data. For example, averaging 350° and 10° mathematically yields 180° (South), even though the actual prevailing wind is North. To prevent these circular errors, engineers must treat wind as a vector quantity rather than a scalar number.

• Component Decomposition: Break raw wind observations into East/West and North/South components using trigonometric functions to ensure mathematical accuracy.
• Independent Averaging: Average each component independently to eliminate the distortion caused by the 0-360° compass circle.
• Vector Recombination: Apply the Pythagorean theorem and ATAN2 functions to the averaged components to calculate the true prevailing direction and speed.

Calculating Effective Rain Impact Angles for Shelter Design

Rain rarely falls vertically in open environments. To design effective stable overhangs, we model the “slanted” trajectory of rain by combining the calculated wind vectors with vertical rainfall intensity. This reveals the actual angle at which precipitation strikes the structure.

• Trajectory Modeling: Combine prevailing wind vectors with rainfall speed to map the physical path of wind-driven rain.
• Polar Coordinate Transformation: Convert Cartesian wind components into polar coordinates to determine the effective strike angle on vertical surfaces.
• Structural Optimization: Use the calculated impact angle to dictate the depth of roof overhangs and the orientation of solid sidewalls to keep the interior dry.

Engineered For Safety And 20-Year Durability

Secure your investment with rust-resistant galvanized steel frames built to last over 20 years. Our modular designs cut installation time by 30%, maximizing your facility’s efficiency and ROI.

Explore Stable Solutions →

Adding DB Solid Wall Panels to the Open Front

Transform exposed open-front structures instantly with DB Stable’s solid partition panels. The modular hot-dip galvanized system provides a rot-proof, kick-resistant barrier against slanted rain without complex construction.

Modular Installation for Partial Front Closures

You do not need a general contractor to weather-proof an open shed. We engineered our partition panels for modularity using a simple connector pin system. You position the panels to block the prevailing wind direction, align the brackets, and drop the pins to lock the wall in place. This method allows you to rapidly retrofit existing structures, creating an immediate windbreak that stops slanted rain from soaking feed or bedding.

• Hardware Included: Every panel ships with a complete installation kit featuring exclusively 304 Stainless Steel anchors and screws.
• Flexible Layouts: The modular design lets you extend or move the barrier as weather patterns or storage needs change.
• Structural Steel: Frames utilize Q235B or Q345B steel, ensuring rigidity without permanent foundations.

Weather Resistance of UV-Stabilized HDPE Infill

Traditional plywood walls act like sponges in open-front scenarios, absorbing wind-driven rain until they rot or mold. Our system solves this by using 28mm-32mm UV Stabilized HDPE infill. This material repels moisture completely and withstands direct sunlight without becoming brittle or discolored. You get a zero-maintenance surface that cleans with a pressure washer and requires no painting or sealing.

The durability extends beyond weatherproofing. We back these panels with a Kick-Proof Guarantee. The HDPE absorbs impact energy rather than shattering, while the hot-dip galvanized steel frame (coated to ISO 1461 standards) prevents rust even in high-moisture environments. This combination ensures your retrofit lasts decades, not just a few seasons.

Creating a True Weather-Proof Paddock Bunk

A weather-proof bunk requires a slanted overhang to deflect wind-driven rain and a raised, multi-layer aggregate foundation to ensure drainage and stability.

Designing Slanted Overhangs and Drainage Bases

Rain rarely falls vertically in open paddocks. To keep the interior dry, you need a slanted roof overhang designed specifically to deflect wind-driven rain and snow. If the geometry ignores prevailing wind vectors, moisture will penetrate the shelter regardless of the wall material. The overhang must extend far enough to push precipitation away from the bedding area.

Beneath the structure, drainage defines longevity. A shelter placed directly on topsoil will sink and create mud traps. You need a multi-layer foundation starting with a compacted subgrade, topped with at least 6 inches of aggregate. This facilitates immediate water runoff and prevents pooling around the frame.

• Foundation Depth: Minimum 6 inches of aggregate over compacted subgrade.
• Perimeter Extension: Extend the base 1 to 2 feet beyond the structure to distribute weight and prevent edge collapse from livestock pawing.

Selecting Hot-Dip Galvanized Steel and HDPE Infill

Standard painted steel or pre-galvanized tubing fails quickly in wet, outdoor environments due to rust at the weld points. At DB Stable, we strictly use Hot-Dip Galvanization After Fabrication conforming to BS EN ISO 1461. By welding the black steel first and then dipping the entire frame, we achieve a zinc coating exceeding 70 microns (often >85 microns on structural parts). This seals every connection against corrosion.

For the walls, wood is a liability in wet weather as it absorbs moisture and rots. We utilize 28mm-32mm UV-stabilized HDPE infill planks. These are chemically impervious to water, mold, and rot, offering a true zero-maintenance solution compared to timber.

• Steel Standard: BS EN ISO 1461 Hot-Dip Galvanization (>70μm coating).
• Infill Spec: 28mm-32mm HDPE (High-Density Polyethylene).
• Cold Climate Upgrade: Use Q345B Low Alloy High Strength Steel to maintain impact toughness and prevent brittle fractures from kicks in freezing temperatures.
